Double Bowl Stainless Steel Commercial Sink - Right Bench, 1700 x 700 x 900mm high.Double Bowl Stainless Steel Commercial Sink - Right Bench, 1700 x 700 x 900mm high.
DSR17

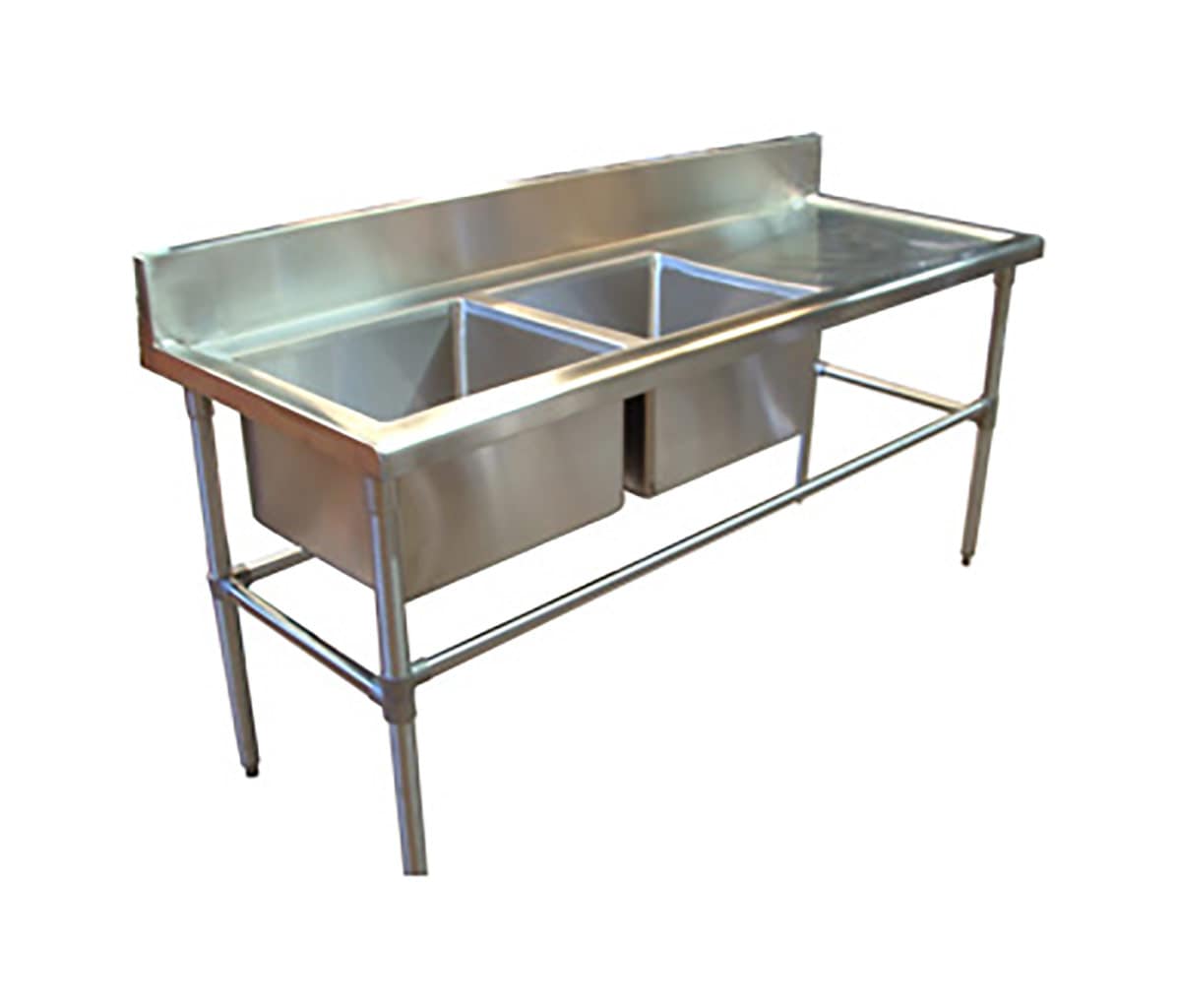

Double Bowl Stainless Steel Commercial Sink – Right Bench, 1700 x 700 x 900mm high

Price: From: $954.00

This high-quality 304 grade stainless sink is right at home in the middle of the action. One of our most popular sizes. It comes with one 300mm deep bowl, sink drainer, stainless legs and stainless screws. Loads of accessories including taps, sink covers, and undershelves are available. Taps can be placed wherever you like: on the sink, the bench, through the splashback, or even on the wall – it’s up to you. Dimensions and specs in the tabs below.

Upgrades: More Info

NEW Pipe Undershelf for DSR17

Shelf To Fit 700mm Deep Sink

Splashback Extension to fit 700mm Benches and Sinks

4 Screw Down Feet (Feet ONLY)

Sink Bracket for Secure Wall Attachment

Double Stainless Steel Commercial Sink – Right Bench 1700 x 700 x 900mm high.
Fully stainless steel double bowl sink with splashback.
This sink matches the 700mm range of splashback benches.

Included in the box:
1 x sink
4 x legs with adjustable feet
4 x cross bars
6 x connectors
2 x sink basket waste drainer 90mm
1 x allen key & screws
1 x assembly instructions

Dimensions:
1700mm long x 700mm deep x 900mm high – bench top with sink
450mm long x 400mm deep x 300mm high sinks – 54L capacity twin bowls (on the left)
150mm x 40mm splashback

Specifications:
1.2mm Thick 304 grade stainless steel top
Splashback: 150mm high x 40mm deep
42mm Diameter stainless steel legs
Adjustable feet fitted to legs – upgrade options for screw down feet
Fit a tap to anywhere on the sink, splashback or wall behind
This sink is modular to 700mm deep splashback benches and cabinets.

Supplied Flat Pack Ready For Assembly
Sinks are supplied flat pack for ease-of-handling and to lower freight costs.
Simply attach your legs to the sink. It takes about 15 minutes to erect a sink. We recommend the use of a friend, passing stranger or friendly looking co-worker.

Shipping Dimensions:
Sink: 1700 x 700 x 460mm high (including splashback)
Legs Box: 1570 x 170 x 100mm
Gross Weight: 35.1kg

Eco Friendly
Brayco Stainless Steel is made from 95% recycled materials.

Pipe Undershelf for DSR17
Replace your rails (supplied with every Brayco sink) with this pipe undershelf to create extra storage.
Add one or more shelf to your sink.
201 Grade stainless steel pipes. Fully welded.
Download instruction here.

Underbench Sink Shelf
Add extra storage with the addition of a flat shelf. 580 x 650mm.
Shelf must be installed during assembly of your sink.
Download instruction here.

Splashback Extension
Add a stainless steel splashback extension to convert your sink or bench top to a corner unit. Sizes available to fit 700 or 610 deep. Suits left hand or right hand side of the bench.

Screw Down Feet (Feet ONLY)
Replace your standard adjustable feet (supplied with every Brayco sink) with screw down feet. Feet are adjustable up to 20mm.
Simply knock out your standard foot, firmly push in the screw down foot, and secure to your floor. Floor fixings not supplied.
Priced above for a set of 4.
Download instruction here.

Sink Bracket for Secure Wall Attachment
Designed to keep your bench or sink securely in place during an earthquake.
Very useful for securing your sink in so many more venues.
Simply add a bracket to the top and bottom of each sink leg and fix to the wall. Wall fixings not supplied.
Priced above for a set of 2. We recommend you purchase 1 set of 2 brackets for each leg.
Download instruction here.

Splashback Extension
Add a stainless steel splashback extension to convert your sink or bench top to a corner unit. Sizes available to fit 700 or 610 deep. Suits left hand or right hand side of the bench.

Underbench Sink Shelves
Add extra storage by snap locking an underbench sink shelf onto the support bar of your sink for extra storage.

Taps
Fix a tap wherever you like. There is room between the trough and the splashback, through the actual splashback or you can even mount taps from your wall.

We deliver coast-to-coast around Australia from our warehouses in Brisbane, Perth, Melbourne, Tasmania, Sydney and Adelaide — but of course you are welcome to pickup.

Some products are heavy and bulky. For large orders or large items please advise us at checkout if you do not have a forklift on site or require help to unload. One of our friendly team will be in touch to discuss freight with you if need be.

Please carefully check all items upon receipt. If you receive an incorrect or damaged item, please ensure the item is in its original condition and packaging and contact us within 48 hours of receipt.

Please click over to our Shipping and Returns page for further details.

We’re excited to offer a free Click and Collect service. Simply shop online and collect from your local branch at a time that suits you.

  1. Simply shop online and select Click and Collect option at checkout.
  2. You can pay online or at the branch when you collect your order.
  3. When your order is ready one of our friendly customer service team will call you to let you know it’s time to head into the branch. Remember to bring a copy of the email and some photo ID with you. ( or proof of purchase)

Whilst we will always endeavour to have your click and collect order ready within 5 hours, with larger orders we may not always be able to fulfil within this timeframe.

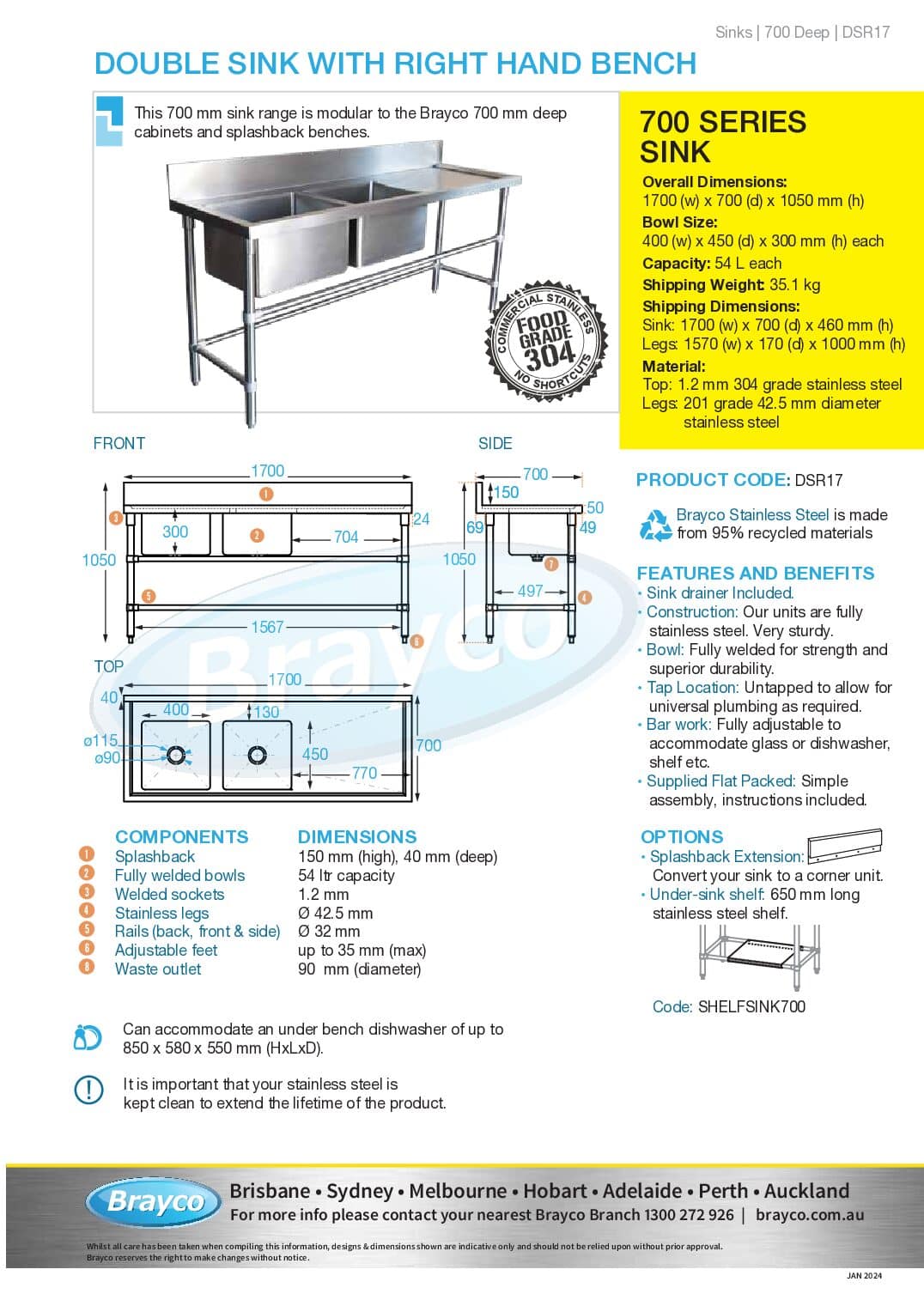

Click here to download and view our latest Tech Sheet, in PDF format.

Click here to download and view our Sink Shelf Installation Instruction, in PDF format.

Click here to download and view our latest Brayco Catalogue, in PDF format.

Click here to download and view our Stainless Steel Cleaning Methods and Recommendations Guide, in PDF format.
